current location：home page > product > Wind Knife And Air Knife > TA-series super pneumatic air knife > Airhank TA-200-S2
Product model:
TA-200-S2
Outside diameter of air inlet:
Width of air outlet:
Effective length:
Air inlet position:
Side / top
Number of air inlets:
2-4 individual
Texture of material:
6061 aluminium alloy
Service temperature :
-40 ~ 200℃
Sealing material :
silica gel
air knife form:
Customized fixed, unilateral umbrella drainage
Withstand voltage:
8Kg/cm3
Inlet duct mode:
Gas pipe joint, internal thread

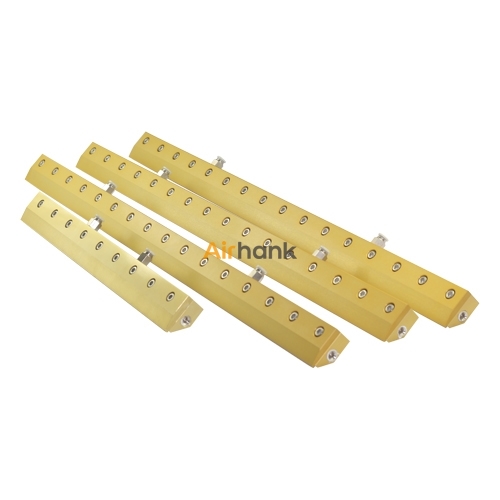

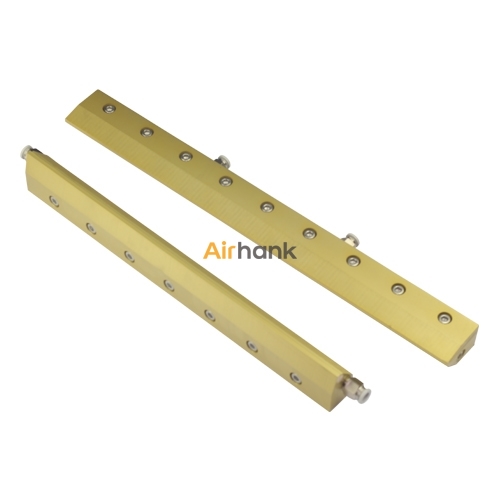

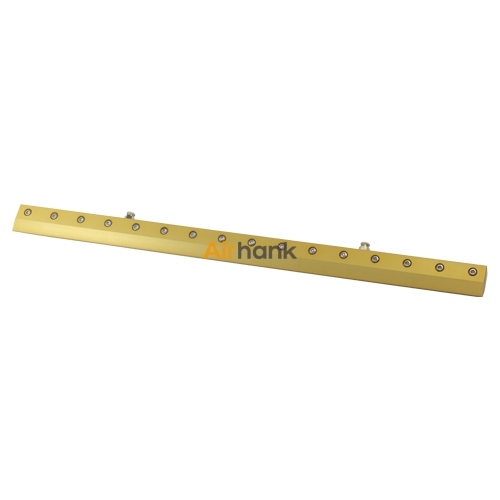

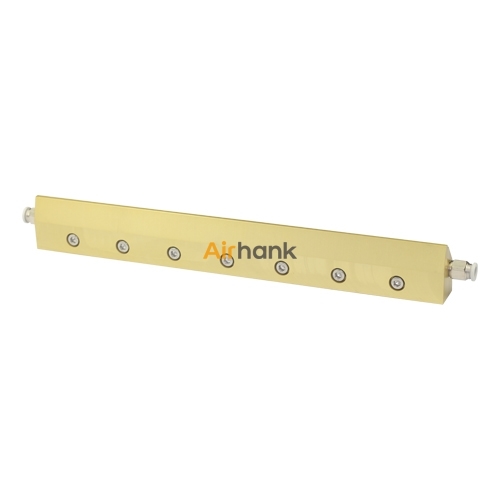

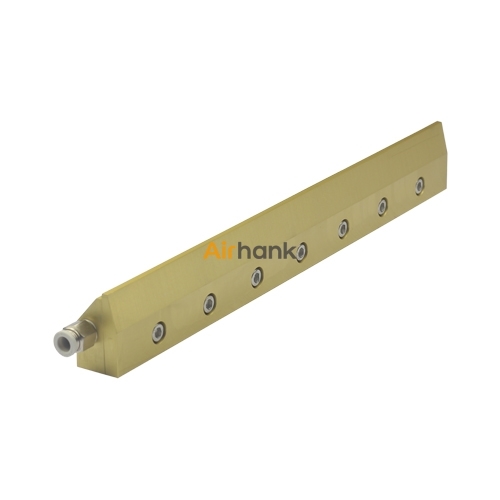

Airhank TA-200-S2
Data download
Data download
Characteristic curve
Performance data
1、Airhank air knife model description, for example: model formula: ta-200-s2-12-1, set the order size as 200 mm, knife edge width as 1 mm, side hose head air inlet, 2 air inlets, air inlet size as 12 mm, air outlet size as 1 mm.
2、When ordering, please pay attention to the effective length of the air knife, which does not include the thickness of the end caps on both sides of the air knife. The length of the air knife ordered in the above case is 200 mm, which does not include the side end caps. The actual installation length is 208 mm.
3、For orders beyond the above data range, please call our company at 18028272226.

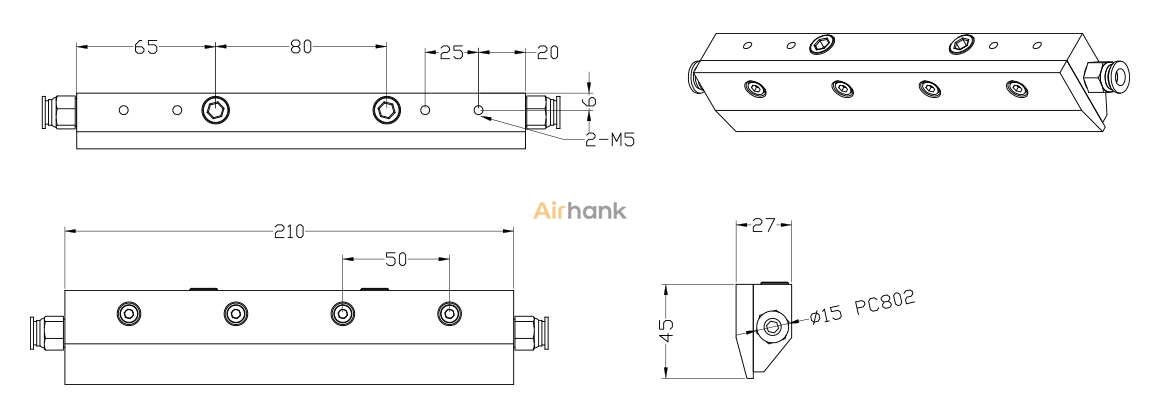

Technical drawings
